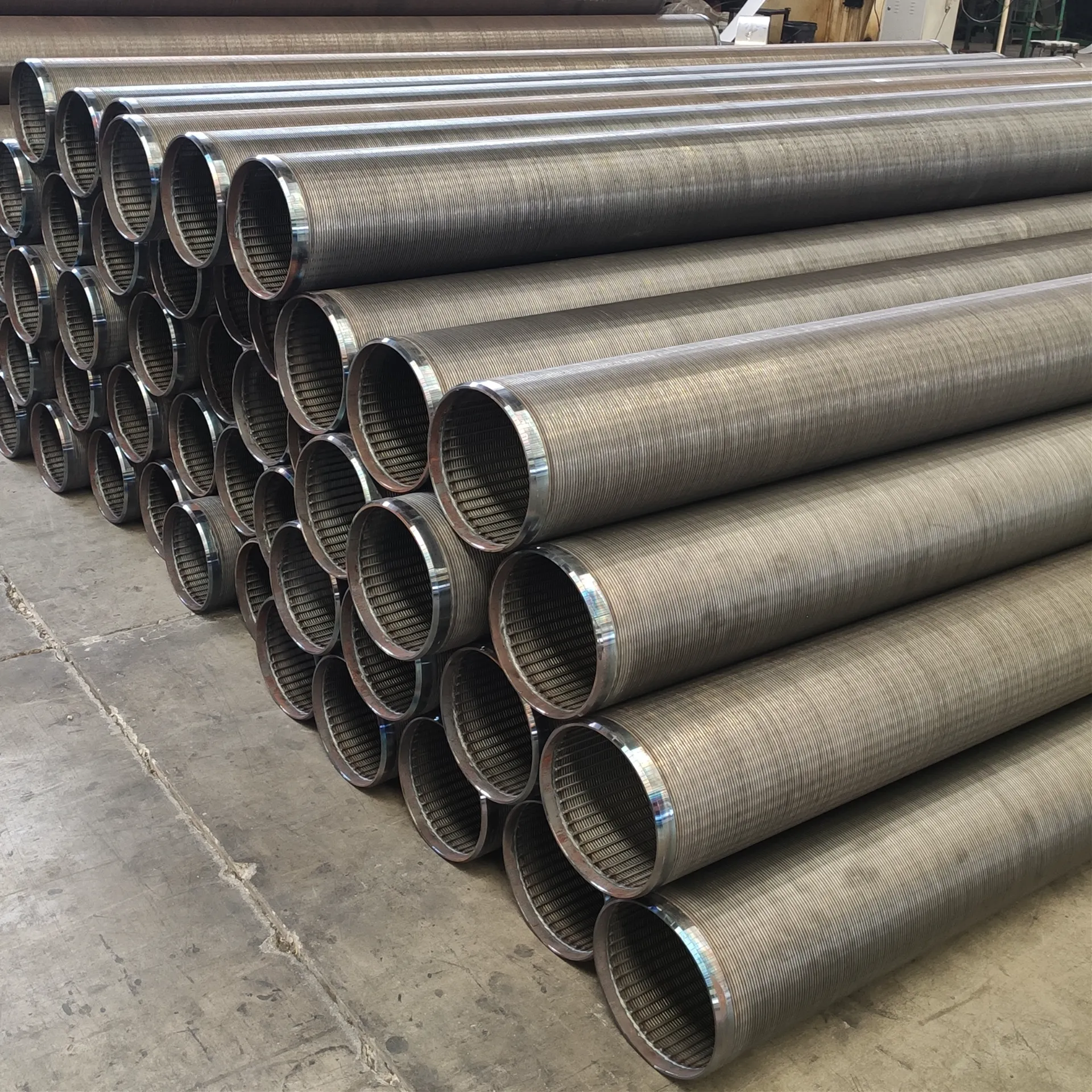

In the drilling and extraction process of resources such as oil and gas, Wedge Wire Screen Pipe, with its excellent performance, has become an indispensable sand control device, providing key guarantees for the smooth progress of drilling operations and the improvement of extraction efficiency.
The sand control principle of Wedge Wire Screen Pipe is based on clever structural design
Static wedge wire screens are welded with trapezoidal cross-section wedge-shaped wires and support wires. The unique V-shaped cross-section makes it difficult for gaps to be blocked, allowing for precise control of filtration particle size. During drilling operations, formation fluids can smoothly enter the wellbore through the gaps in the screen tube, while solid particles such as sand are intercepted outside, effectively preventing damage to downhole equipment and surface processes caused by formation sand production and ensuring stable drilling operations.
Wedge Wire Screen Pipe has outstanding advantages in the field of drilling sand control
The high-strength structural design enables the vee wire screen to withstand the complex pressure environment underground and is not easily deformed or damaged; Extremely high corrosion resistance enables it to work stably for a long time in geological environments rich in various chemicals; Accurate gap size control ensures efficient sand control, effectively blocking sand particles while ensuring high fluid permeability and maintaining good liquid production efficiency.
The application of Wedge Wire Screen Pipe runs through multiple key stages of drilling operations
In naked eye completion operations, sand control barriers can be quickly established by directly entering the well; During casing completion, reliable long-term sand control protection can be provided for the oil well by installing it in conjunction with the casing. Whether it is deepwater drilling in offshore oil fields or extraction under complex geological conditions on land, vee wire filter screens can meet the sand control needs of different operational scenarios with excellent adaptability.
With the continuous advancement of drilling technology, Wedge Wire Screen Pipe is also continuously innovating and developing
The application of new materials has enhanced the strength and corrosion resistance of sieve tubes, such as the significant improvement of their service life in harsh environments with the use of new alloy materials; The improvement of manufacturing processes has resulted in higher precision of gaps and more stable structures; The integration of intelligent technology enables the screen tube to monitor its own status and underground sand control situation in real time, providing data support for timely maintenance measures.
In summary, Wedge Wire Screen Pipe has become the core equipment for drilling sand control due to its unique structure, significant performance advantages, and wide applicability. Wedge Wire Screen Pipe plays an irreplaceable role in the entire drilling operation process, from ensuring the safety of downhole equipment to improving oil and gas extraction efficiency. With the continuous innovation of technology, Wedge Wire Screen Pipe will undoubtedly provide stronger support for the efficient and sustainable development of the drilling industry, and continue to shine in the field of energy extraction.
Wedge Wire Screen Pipe FAQs
What is the main function of Wedge Wire Screen Pipe?
Wedge Wire Screen Pipe is mainly used for sand control operations in oil and gas wells. Through its precisely arranged wedge-shaped wire gaps, it blocks formation sand particles from entering the wellbore while allowing fluid to pass through, thereby protecting downhole equipment, maintaining stable production capacity, and extending the life of the oil well.
What are the advantages of Wedge Wire Screen Pipe compared to traditional screen pipes?
High flow capacity: The V-shaped gap design between wedge-shaped wires can reduce blockage and improve fluid flow efficiency.
Strong anti clogging ability: The structure of gradually widening gaps from top to bottom can prevent particles from getting stuck.
High durability: Stainless steel or special alloy materials are corrosion-resistant and wear-resistant, suitable for harsh underground environments.
Precise filtration: The gap size can be customized (usually 50500 microns) to adapt to the distribution of sand particles in different formations.
How to install Wedge Wire Screen Pipe in drilling systems?
The sieve tube is usually used as a part of the completion string and is fixed on the outside of the base pipe (such as casing or liner) by threaded connection or welding. During installation, it is necessary to ensure that the screen pipe section is aligned with the production layer position and to cooperate with gravel filling (if necessary) to enhance sand control effect.
What problems may be encountered during the use of Wedge Wire Screen Pipe? How to solve it?
Gap blockage - can be resolved by backwashing or acid washing.
Mechanical damage - Avoid collisions when going down the well and choose materials with high compressive strength (such as 316L stainless steel).
Corrosion failure - choose corrosion-resistant coatings or alloys (such as super duplex steel) according to the well conditions.
How to choose suitable Wedge Wire Screen Pipe parameters?
We need to consider comprehensively:
Formation sand particle size: The gap size of the sieve tube should block more than 90% of the formation sand (determined through screening experiments).
Fluid characteristics: When containing corrosive media, corrosion-resistant materials should be selected.
Well depth and pressure: Thick walled screen pipes or reinforced support structures should be selected for deep or high-pressure wells.
