What Do Vibration Plates Do For You in Industrial Screening

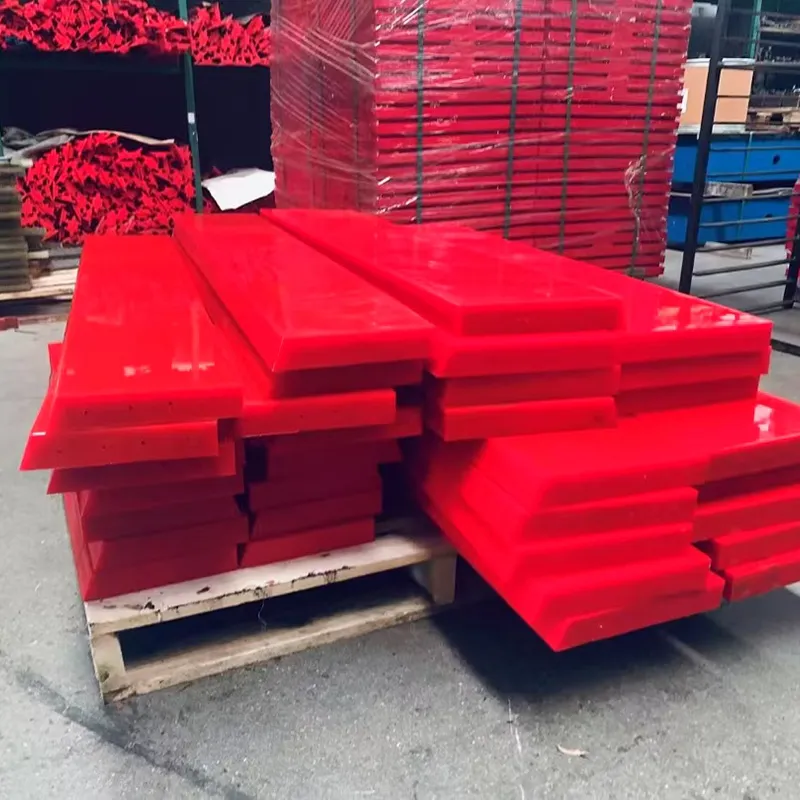

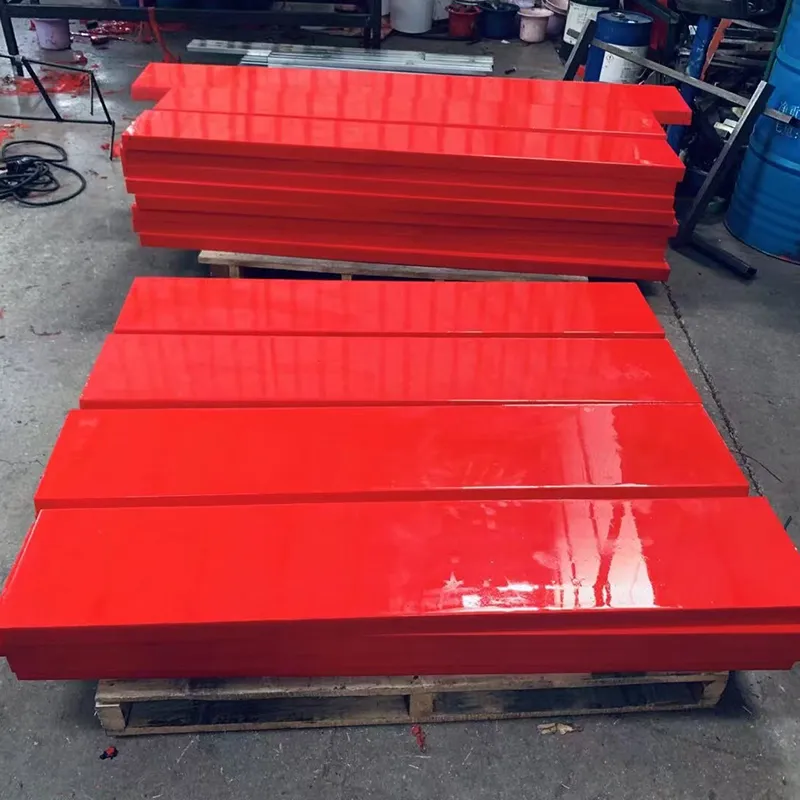

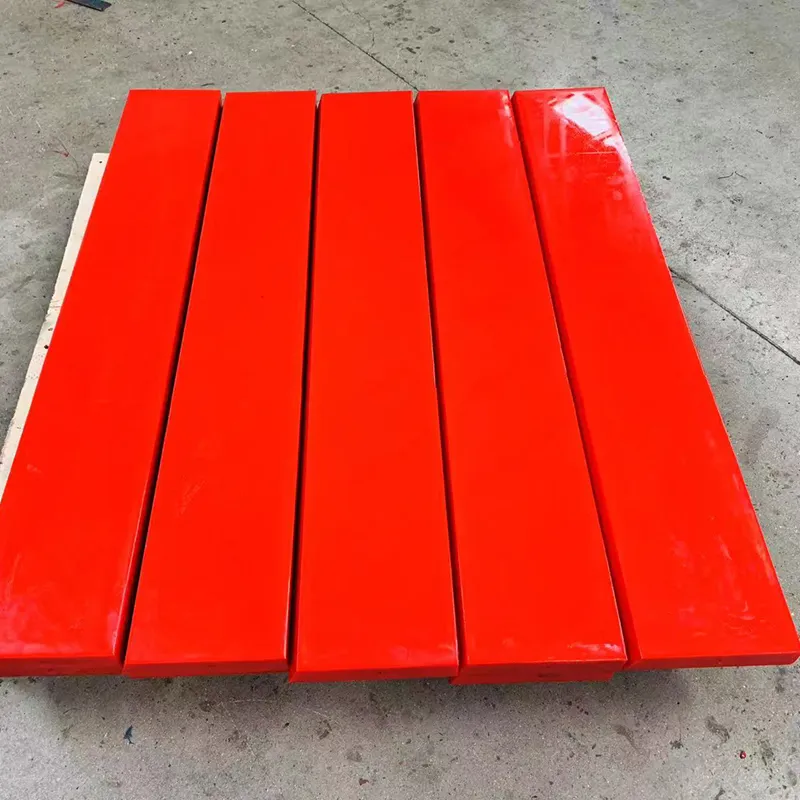

When people ask me what “vibration plates” really do on a production line, I smile—because the answer is less gym-talk and more nuts-and-bolts. In quarrying and mining, vibration plates—specifically the Vibrating Screen Side Pressure Plate from Hehuang Road, Anping County, Hengshui—keep the screen media clamped, tight, and leak-free. That’s how you hold particle size accuracy, protect bearings, and keep throughput honest. And yes, many customers say a good set of side plates is the quiet MVP of the whole screen box.
So, what do they actually do?
- Apply uniform clamping force along the screen’s side, maintaining media tension and aperture stability.
- Prevent side leakage and fines bypass (surprisingly common on tired lines).
- Dampen micro-vibrations that fatigue frames and bolts over time.
- Improve safety: less wandering screen cloth, fewer pinch points during changeouts.
- Stabilize cut-size accuracy—real-world use may vary, but I often see a tighter PSD after a refit.
In short, What Do Vibration Plates Do For You? They protect quality and uptime. Not glamorous, but absolutely mission-critical.
Materials, Methods, and Process Flow
Factory folks in Anping will tell you: steel and process are everything. Here’s the typical flow I observed (and double-checked with QA):
- Material selection: Q235/Q345 carbon steel or 65Mn; stainless 304/316 for corrosive lines.
- Laser cutting and CNC bending: tight radii to avoid stress risers; chamfered bolt slots.
- Precision drilling: bolt patterns matched to OEM decks; tolerance ≈ ±0.5 mm (ISO 2768-m).
- Surface treatment: hot-dip galvanizing (ISO 1461) or epoxy powder coat; black oxide for dry duty.
- Fit-up and torque trial: verification with 8.8/10.9 bolts (EN ISO 898-1); torque charts supplied.
- QC: dye-penetrant checks on bends; salt-spray sampling (ISO 9227); dimensional reports.
Typical Specifications
| Material options | Q235/Q345, 65Mn, 304/316 SS |
| Thickness | 6–16 mm (custom up to 20 mm) |
| Length × Height | ≈ 400–3000 mm × 60–180 mm |
| Finish | HDG (ISO 1461), epoxy powder, black oxide |
| Bolt class | 8.8 / 10.9 with washers |
| Operating temp | -20 to 200 °C (coating-dependent) |
| Service life | ≈ 12–36 months in aggregates; longer in light-duty |
| Compatibility | Single/double-deck screens; OEM/aftermarket |
Vendor comparison (real-world buying notes)
| Vendor | Steel grade | Customization | Lead time | Certs | Warranty | Price |
|---|---|---|---|---|---|---|
| MutoScreen (Anping) | Q345 / 65Mn | High (CAD-to-part) | 7–15 days | ISO 9001 | 12 months | Mid |
| Generic importer | Q235 | Low | 25–40 days | Varies | 6 months | Low |
| Local fabricator | Q235/Q345 | Medium | 3–10 days | — | 3–6 months | Mid–High |
Where they’re used (+ a quick case)
Industries: aggregates, mining, recycling (C&D), fertilizers, chemical powders; food-grade executions in stainless for salt and sugar lines.
Case: A limestone quarry in Guangxi swapped in Q345 HDG side plates. Screen change time dropped from 2h10m to 1h35m; estimated spillage fell ≈ 70 kg/day. After 14 months, bolt-hole ovalization was negligible. Maintenance chief told me, “it just holds tension better.” That’s the practical side of What Do Vibration Plates Do For You.
Testing, data, and standards that matter
- Balance and vibration compatibility checked to ISO 21940 guidance (screen OEM dependent).
- Coating: HDG thickness ≥ 70 µm typical (ISO 1461); salt spray spot checks 240–480 h (ISO 9227).
- Bolt property verification per EN ISO 898-1; torque charts supplied with real-world safety margins.
- Sampling: GB/T 2828.1 AQL-based incoming and final inspection.
Buying tips (learned the hard way)
- Ask for the bolt pattern drawing and bend radius before you sign off.
- Check coating spec vs. your pH and moisture exposure; HDG beats powder in wet quarries.
- Specify service-life targets (e.g., 12 months at X tph) and keep a torque log. It sounds fussy, but it pays.
To be honest, the value of What Do Vibration Plates Do For You becomes obvious the first time you stop chasing fines leaking off the deck sides.
Authoritative citations
- ISO 1461: Hot dip galvanized coatings — Specifications and test methods.
- ISO 9227: Corrosion tests in artificial atmospheres — Salt spray tests.
- ISO 21940 series: Mechanical vibration — Rotor balancing and vibration evaluation (applied as guidance for rotating equipment compatibility).
- EN ISO 898-1: Mechanical properties of fasteners — Bolts, screws and studs.
- GB/T 2828.1: Sampling procedures for inspection by attributes.
